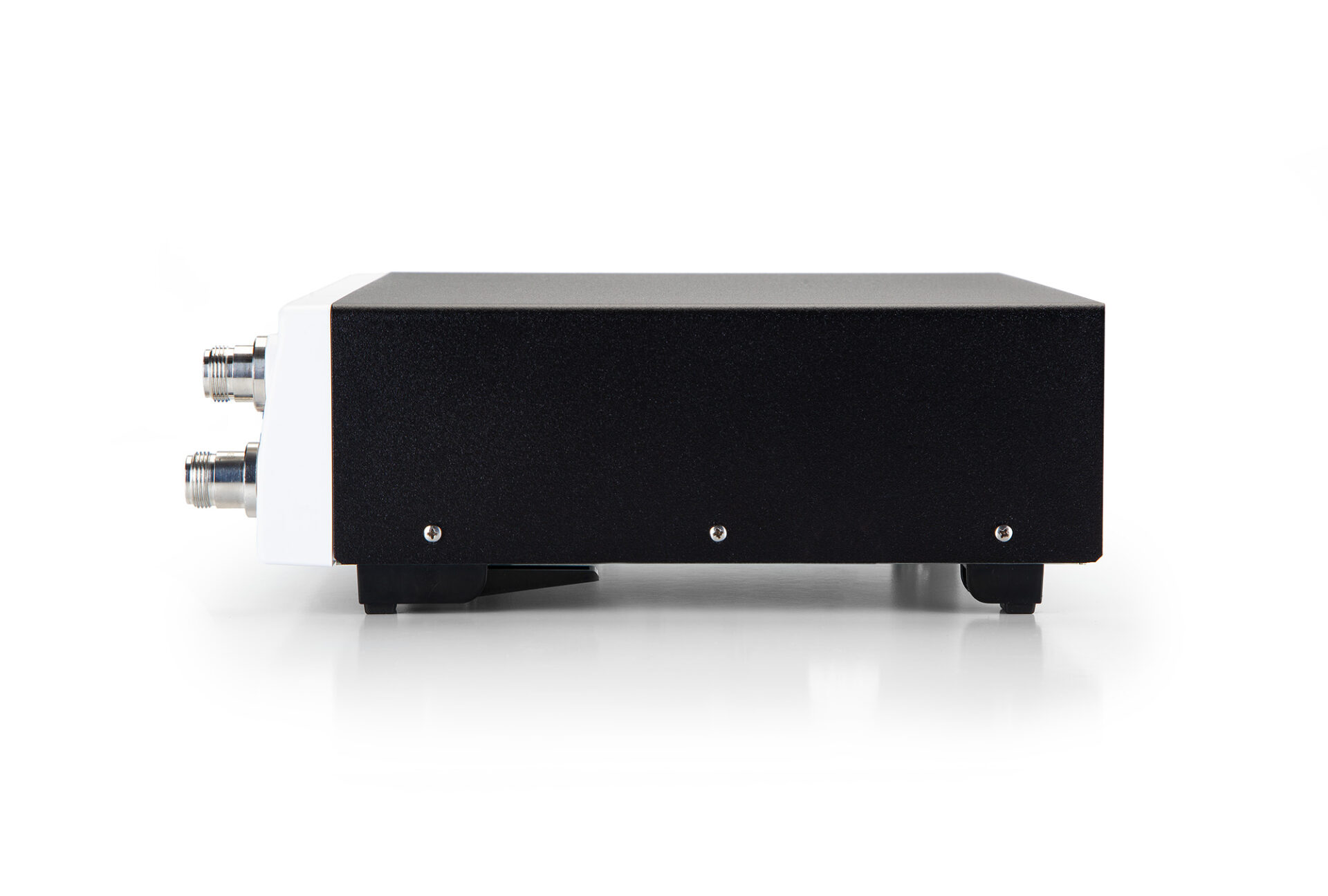

TE3002 Dual Port Vector Network Analyzer

  • SKU: LBA-3002-MTR
  • Stock Status: In stock


Only 3 In Stock. Ships in 1-2 Business Days!

Experience precision and versatility with the TrewMac TE3002 One Directional Duo Port Vector Network Analyzer. Covering a frequency range of 30kHz-300MHz with 1 Hz resolution, it delivers accurate measurements for complex transmission and reflection tasks. Supporting SOL, THRU, and SOLT calibration, it eliminates test cable effects. Rugged yet lightweight, it’s suitable for benchtop or portable use, powered by mains or internal battery. With RS232 and USB interfaces and advanced PC software, it offers comprehensive analysis tools. Ideal for RF design, antenna testing, impedance matching, and more. Calibration Certificate and CE certification included.

•Dual Port
•0.03 MHz to 300 MHz
•RS 232 & USB Interface


Product Description:

The TrewMac TE3002 is a high-performance One Directional Duo Port Vector Network Analyzer designed to deliver accurate and detailed measurements. With a frequency range of 30kHz-300MHz and 1 Hz resolution, it excels in complex transmission and reflection measurements.

The unit supports SOL, THRU, and SOLT calibration, effectively eliminating the effects of test cables and jigs. It comes with calibration standards, providing a complete and convenient solution for precise measurements in various applications such as RF design, antenna testing, impedance matching, cable fault finding, filter design and test, and cutting cables to precise electrical lengths. With its full vector measurement capability, the TE3002 Vector Network Analyzer accurately resolves resistive, capacitive, and inductive components, allowing for thorough analysis and evaluation.

Designed for versatility and convenience, the TE3002 One Directional Duo Port Vector Network Analyzer is both rugged and lightweight. This Network Analyzer can be powered by mains or an internal battery, making it suitable for both benchtop and portable use. Its robust construction ensures reliable performance in various environments.

The unit features an RS232 and USB interface, expanding its capabilities by enabling swept frequency measurements and data logging. The included PC software further enhances its functionality, providing powerful analysis tools such as Smith chart plotting, time domain reflectometry, distance to fault, cable length, velocity factor, characteristic impedance, interference spectrum scanning, multi-series plotting, difference plotting, and filtering. The software also allows data to be stored in a format compatible with Excel, facilitating easy analysis and sharing of measurement results.

In summary, the TrewMac TE3002 One Directional Duo Port Vector Network Analyzer offers outstanding measurement capabilities and versatility for a wide range of applications. With its precise complex transmission and reflection measurements, along with the support of calibration standards and advanced analysis tools, it provides engineers and technicians with the necessary insights for RF design, antenna testing, impedance matching, cable fault finding, and more.

Its rugged yet lightweight design, along with the option of mains or battery power, ensures convenient usage in various settings. The TE3002, combined with its RS232 and USB interface and comprehensive PC software, delivers a comprehensive solution for accurate and efficient measurements and analysis in the field of RF engineering.

Calibration Certificate and CE certification included with every meter purchase.


Frequency range: 0.03 MHz -300 MHz
Frequency resolution: 1 Hz
Frequency accuracy: +/-10 ppm
Output Signal: User adjustable to 150% – Normal output (100%) is 1 Vpp open circuit
Input Protection: Diodes begin clamping the input signal at 4Vpp – Max input voltage is 50VDC or AC peak
Source Impedance: Approximately 35 Ω
Measurement Resolution:
Z: Three significant figures to 0.001Ω, 0.1 degrees
C: Three significant figures to 0.1pF
L: Three significant figures to 0.1nH
S11: Three significant figures to 0.001magnitude,  0.1 degrees
Battery: Capacity: 2.2 Ah, 2 hours of battery operation at full charge. Charging time: 20 min
Measurement probe: Front panel type N connections
Interface: USB
Weight: 4.19lbs
Dimensions: 9.84 in W x 7.87 in D x 3.15 in H



  • UK/US/EU Mains power pack
  • D-9-D9 Serial Communications Cable
  • USB cable
  • Male Short, Male Open, Male 50R
  • Female Short, Female Open, Female to Female Adaptor

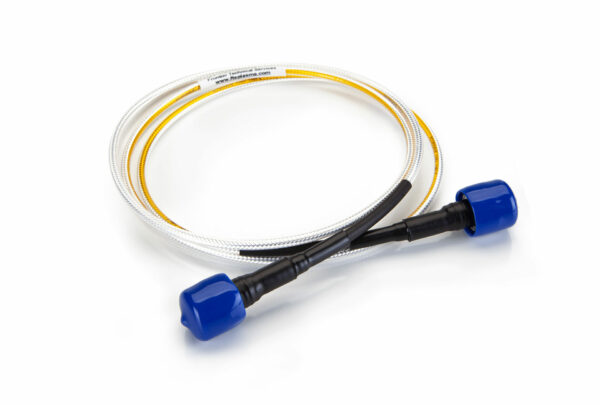

  • Test Cable
  • Java based PC software  USB with Operation Manual
  • Protective hard carry case with shoulder strap
  • Calibration Certificate


  • 3 piece N type Male SOL custom calibration kit
  • 3 piece N type Female SOL custom calibration kit
  • 3 piece N type SOL calibration kit
  • N to BNC male adaptor
  • N to BNC female adaptor

Common Applications:

  • Antenna testing and tuning
  • RF design and development
  • Filter Design and test
  • Plasma chamber tuning
  • Balun tuning
  • Impedance matching
  • LCR meter
  • Interference scanning
  • Cable fault finding
