YSHIELD® SIL54 – Preservative-Free Shielding Paint

YSHIELD® SIL54 is a preservative-free shielding paint designed for interior applications. Its minimalist formulation is low-emission, plasticizer-free, and solvent-free, making it a suitable choice when avoiding preservatives is a priority.

As a dispersion silicate paint with low acrylic content, SIL54 provides good adhesion, including on difficult substrates. Its coarse conductive pigment (approx. 80 µm) creates a relatively soft, electrically conductive coating that shields against both high-frequency electromagnetic fields (HF) and low-frequency alternating electric fields (LF).

SIL54 is designed for interior walls, ceilings, and floors and is applied using a paint roller. It provides up to 53 dB shielding attenuation at 1 GHz with a double thick-coat application and has been tested from 600 MHz to 40 GHz according to IEEE Std 299-2006.

TÜV SÜD certified under TM-09 for health-related ingredients and emissions, product and process monitoring, and control of input materials.

• SIL54 Shielding Paint – Special interior shielding paint with a minimalist formulation and no added preservatives
• TÜV SÜD Certified – Monitored and tested under TM-09 for health-related ingredients, emissions, and material quality
• Low-Emission Formula – Preservative-free, low-emission (VOC), plasticizer-free (SVOC), and solvent-free
• High Shielding Effectiveness – Up to 53 dB attenuation at 1 GHz with a double thick-coat application
• HF & LF Electromagnetic Shielding – Shields high-frequency electromagnetic fields and low-frequency alternating electric fields
• 5G Frequency Compatible – Tested across frequencies from 600 MHz to 40 GHz, including 5G FR1 and FR2 frequency ranges
• Electrically Conductive Coating – Conductive surface designed for integration into functional equipotential bonding (FEB)
• Dispersion Silicate Paint – Low acrylic content provides good adhesion, including on difficult substrates
• Interior Application – Recommended for interior walls, ceilings, and floors
• 80 µm Pigment Size – Coarse-pigment formulation that creates a relatively soft coating film
• Roller Application – Designed for application with a standard paint roller
• Manufactured by YSHIELD® in Germany

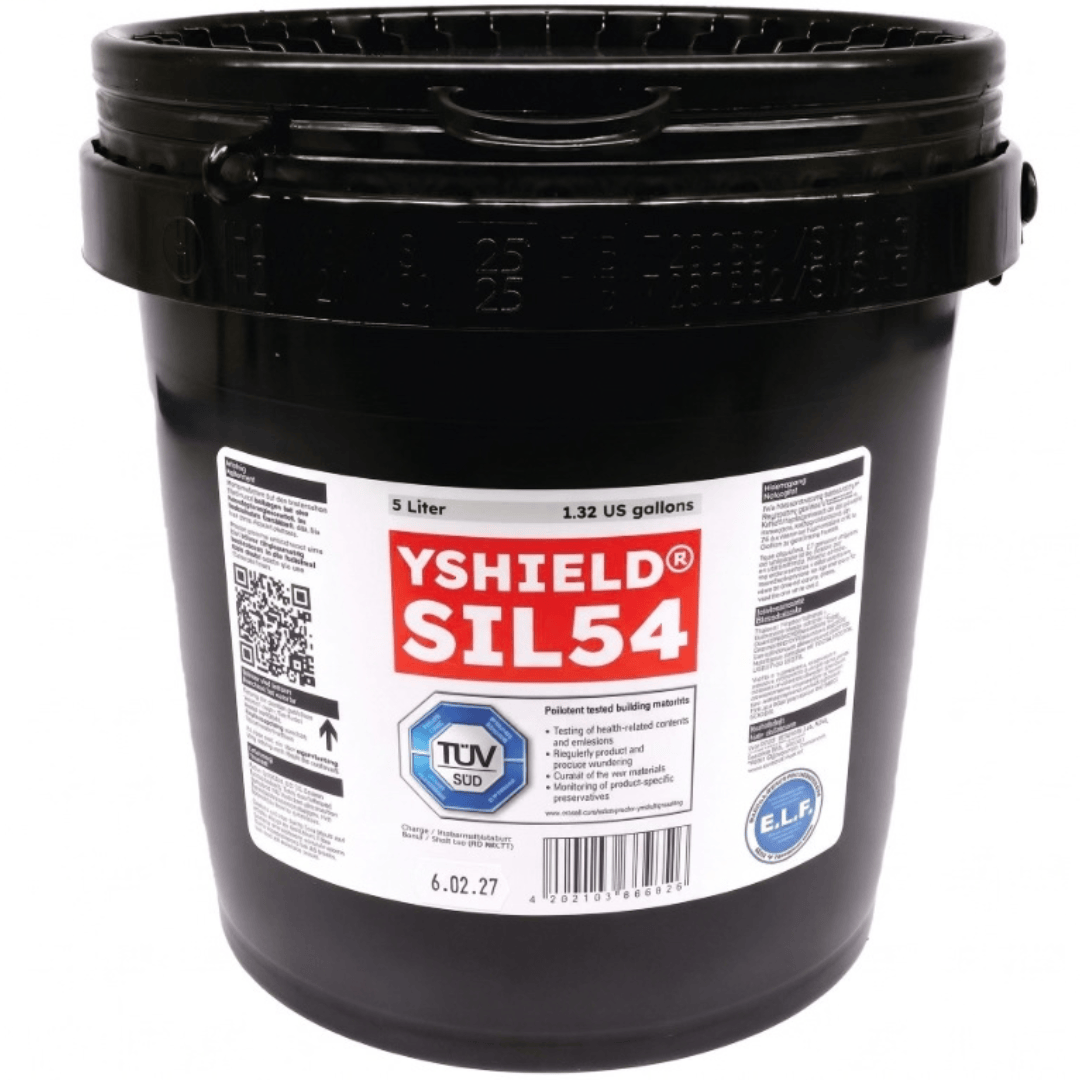

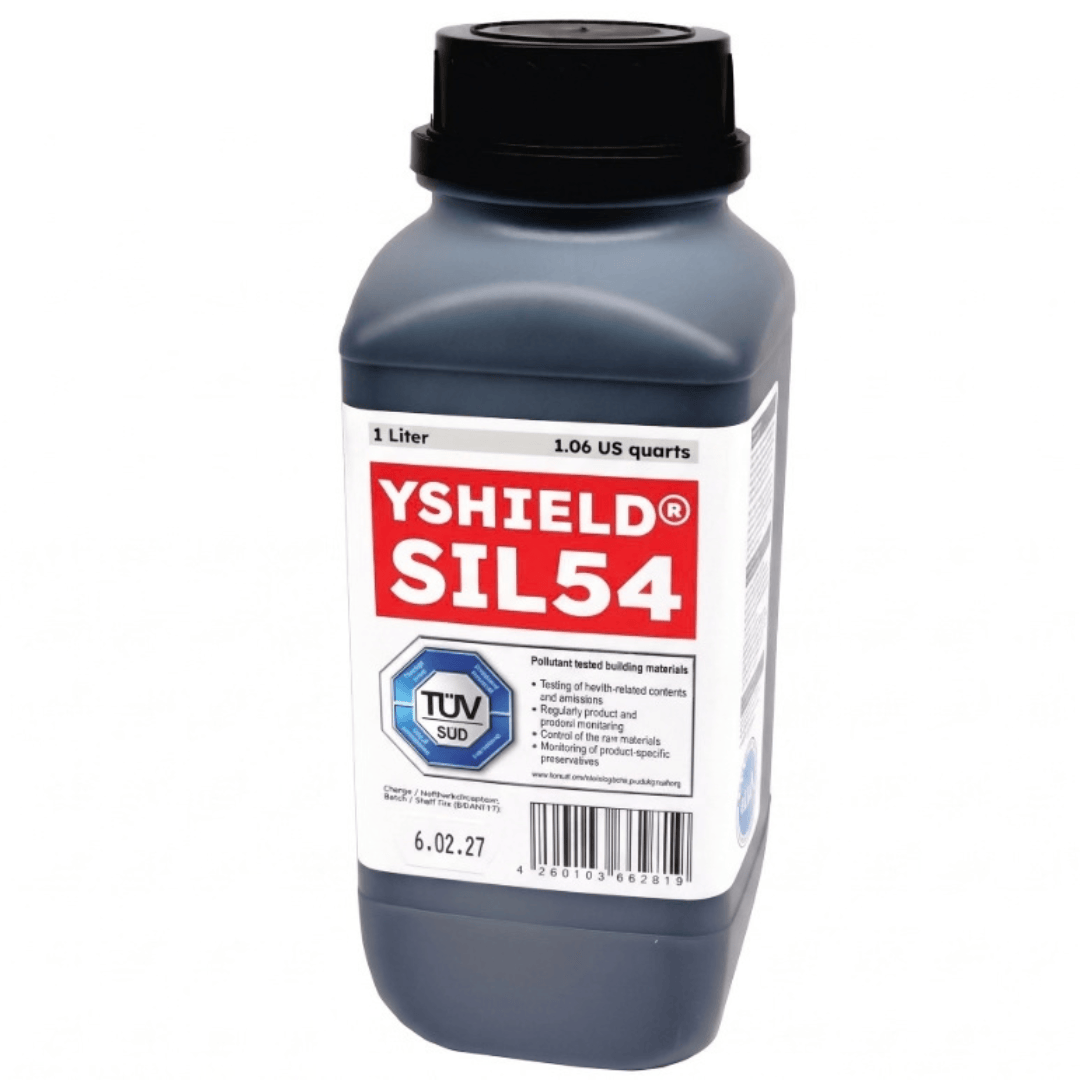

• Available Sizes: 1 Liter and 5 Liters
• Color: Black; can be overcoated with standard emulsion paints
• Paint Type: Dispersion silicate shielding paint
• Pigment Size: Approx. 80 µm
• Film Characteristics: Soft, electrically conductive coating
• Application Method: Paint roller
• Intended Use: Interior electromagnetic shielding
• Suitable Surfaces: Walls, ceilings, and floors, including mineral and difficult substrates
• Coverage per Liter:
  • Thick coat: Approx. 4 m²/L
  • Thin coat: Approx. 8 m²/L

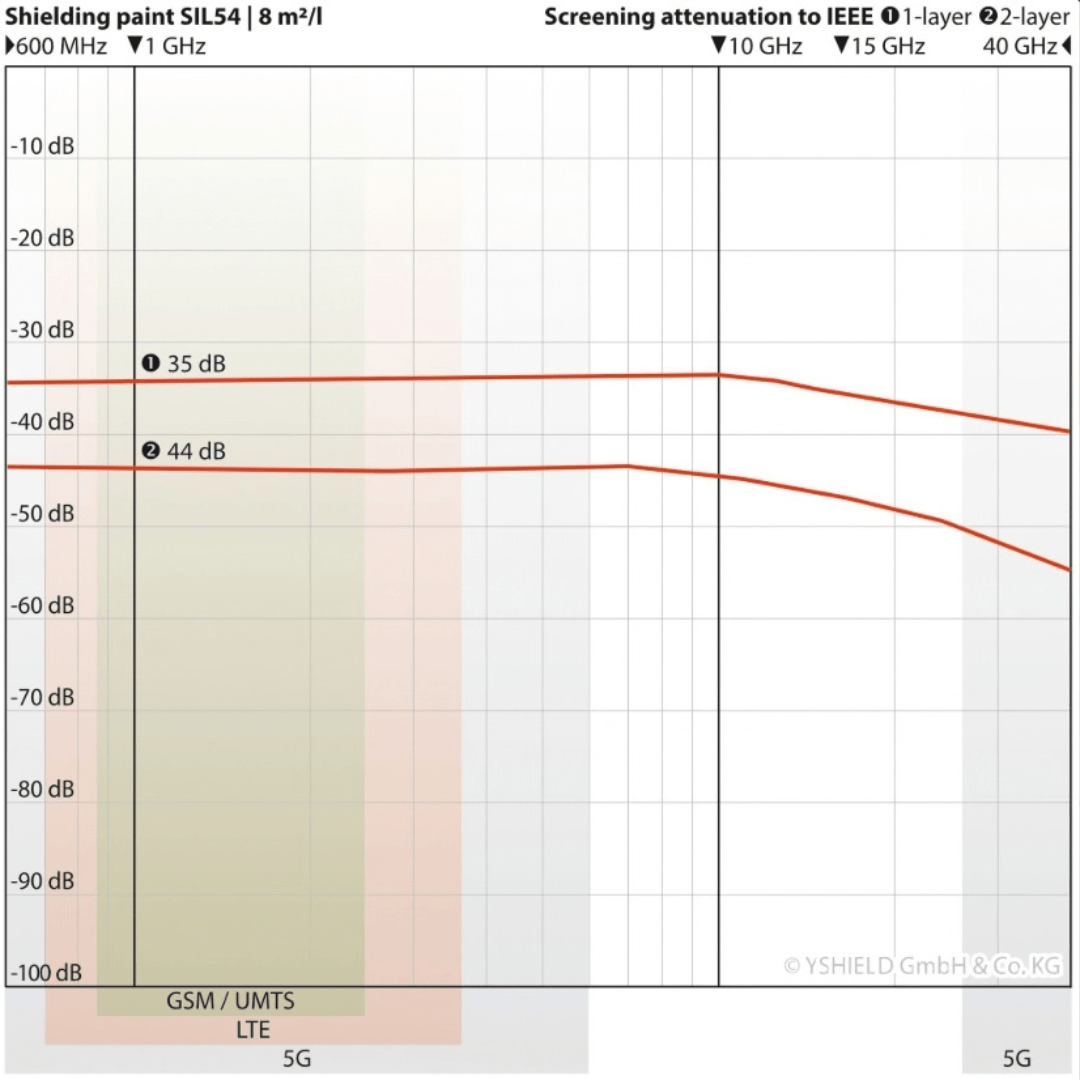

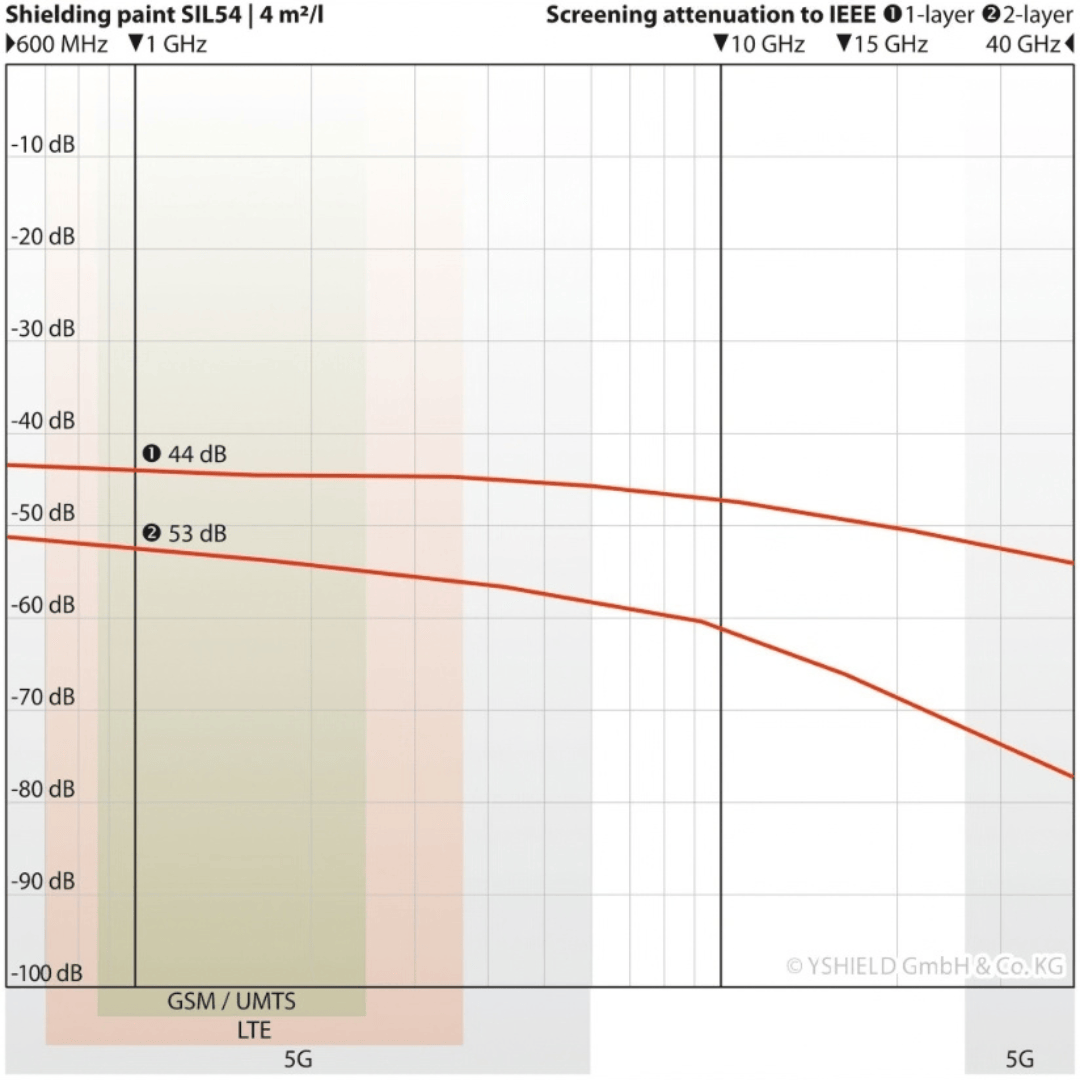

• Shielding Attenuation at 1 GHz:
  • 4 m²/L: 44 dB (1 coat) | 53 dB (2 coats)
  • 8 m²/L: 35 dB (1 coat) | 44 dB (2 coats)
• Test Standard: IEEE Std 299-2006
• Tested Frequency Range: 600 MHz–40 GHz
• Low-Frequency Shielding: Shields alternating electric fields (LF)
• Grounding Requirement: Must be integrated into Functional Equipotential Bonding (FEB)

• Interior Use: Suitable for walls, ceilings, and floors
• Sensitive Environments: Suitable for homes, offices, hospitals, and other areas requiring electromagnetic shielding
• Processing Instructions:
  • Ensure surfaces are clean, dry, and free of dust, grease, or loose material before application.
  • Apply evenly using a paint roller.
  • Refer to the Technical Data Sheet for detailed application instructions and substrate preparation.
• Grounding: Due to its electrically conductive surface, YSHIELD® SIL54 must be integrated into the Functional Equipotential Bonding (FEB) system. Please contact us for grounding accessories.

• TÜV SÜD Certified under TM-09
• Tested for health-related ingredients and emissions
• Preservative-free
• Low-emission (VOC)
• Plasticizer-free (SVOC)
• Solvent-free
• TÜV SÜD monitored for product and process quality and control of input materials

SIL54 -Data Sheet

SIL54-Laboratory Report Screening Attenuation

SIL54 – Expert Report
