The GRD-RAD1 Radial Grounding System is an advanced, portable grounding solution designed for lightning protection systems, portable equipment, and temporary installations. Engineered for quick deployment and superior performance, this system is ideal for environments where traditional 8-ft ground rods are impractical, such as frozen or rocky soil.

Unlike standard ground rods, the GRD-RAD1 system achieves significantly lower ground resistance—62 ohms compared to 111 ohms in controlled tests*. The system includes three 25-ft radial ground cables, each equipped with five 12″ flexible grounding stakes, ensuring a secure and adaptable grounding layout.

Designed with military-grade reliability, this system is functionally similar to US Army grounding specifications, making it an industry-trusted grounding solution. Its modular configuration allows users to extend grounding up to 75 feet in loop, branched, or linear layouts, providing maximum adaptability for various field applications.

For added convenience, the GRD-RAD1 Radial Grounding System includes two 5-ft jumper cables, allowing seamless integration with facility or lightning protection system grounding lugs. The system is also compact and easy to transport, making it perfect for frequent relocation and reuse.

Whether used for temporary site installations, industrial facilities, or critical infrastructure, the GRD-RAD1 Radial Grounding System ensures optimal performance, reliability, and ease of use in challenging environments.

*Test results may vary based on soil conditions.

• Portable Grounding Solution – Ideal for lightning protection systems, portable equipment grounding, and temporary installations.
• Rapid Installation – Faster and easier than driving an 8-ft ground rod, making it perfect for challenging ground conditions
• Superior Grounding Performance – Delivers significantly lower ground resistance (62 ohms vs. 111 ohms for an 8-ft ground rod)*
• Flexible Configuration – Radials can be configured up to 75 feet in loop, branched, or linear layouts
• Durable, Field-Tested Design – Built with rugged materials for long-term, repeated use in demanding environments.
• Complete, Ready-to-Deploy Kit – Includes pre-assembled cables, grounding rods, and essential tools for quick installation.
• Proven Military-Grade Reliability – Modeled after US Army grounding specifications for dependable field performance


  *Ground resistance test results vary depending on soil conditions, moisture levels, and site preparation.

• Ground Resistance:
  8-ft ground rod: 111 ohms
  GRD-RAD1 system: 62 ohms* (varies with soil conditions)
• Radial Cable Configuration:
  Three 25-ft radial ground cables
  Five 12″ radial ground stakes per cable
• Connectivity:
  Two 5-ft jumper cables for equipment grounding
  Connects to grounding lugs on facilities or lightning protection systems
• Installation Method: Faster and easier than traditional ground rods, suitable for rocky or frozen soil
• Weight & Packaging: Compact design for easy transport and storage
• Durability: Military-grade construction for reliable, long-term use


  *Test results vary depending on soil conditions.

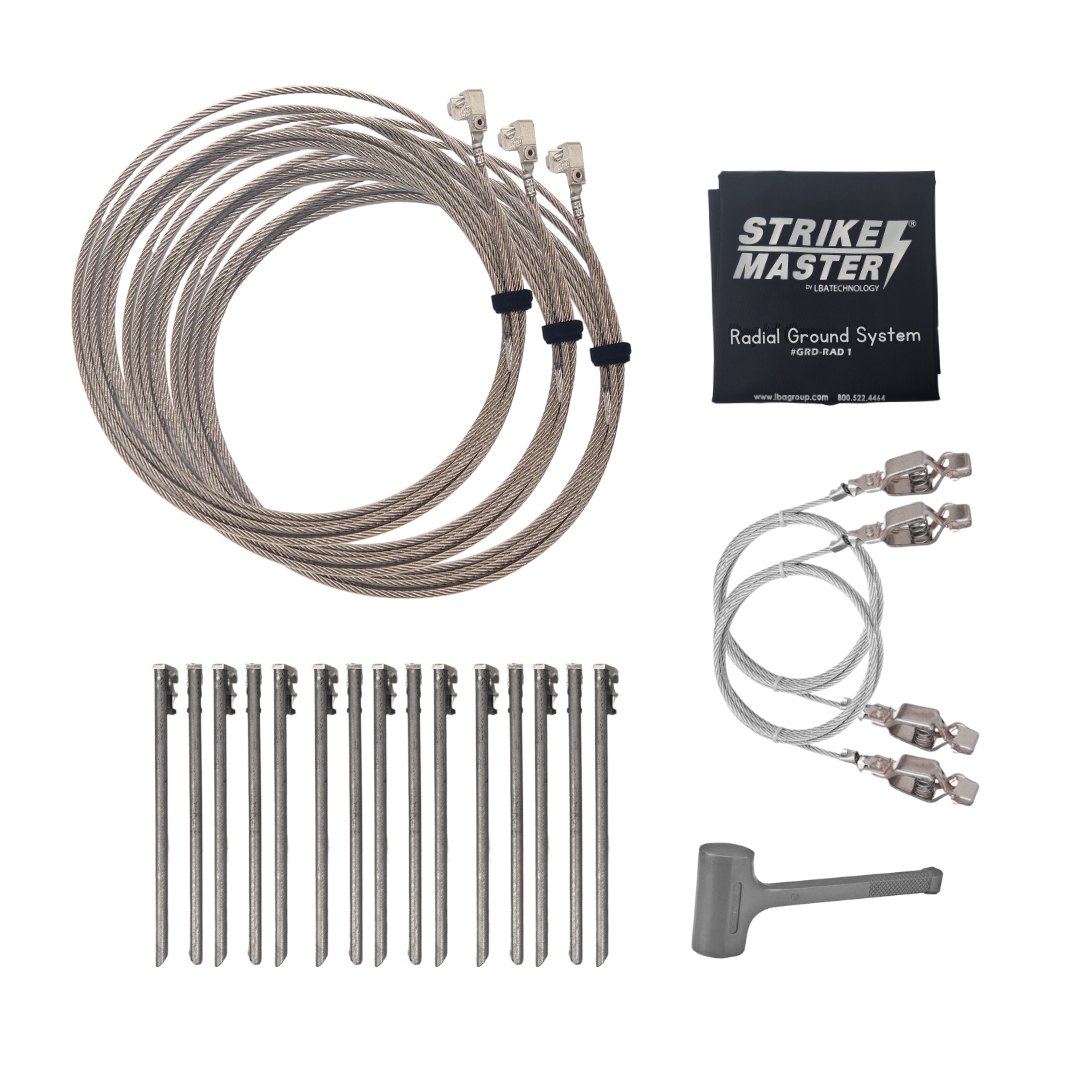

(3) × 25-ft ¼” radial ground cables with terminal lugs
(2) × 5-ft jumper cables with clamps
(15) × 18″ grounding rods with riveted “J Clamps”
(1) × Dead blow hammer
(1) × Small open-ended wrench
(1) × GRD-RAD1 carrying bag
(1) × Instruction sheet

This system is designed for flexible field configuration. Kits can be tailored to meet specific grounding requirements — for example, adding additional radial runs, jumpers, or grounding rods as needed. Contact us for a custom quote to match your project’s specifications.

Radial Grounding System – Spec Sheet
