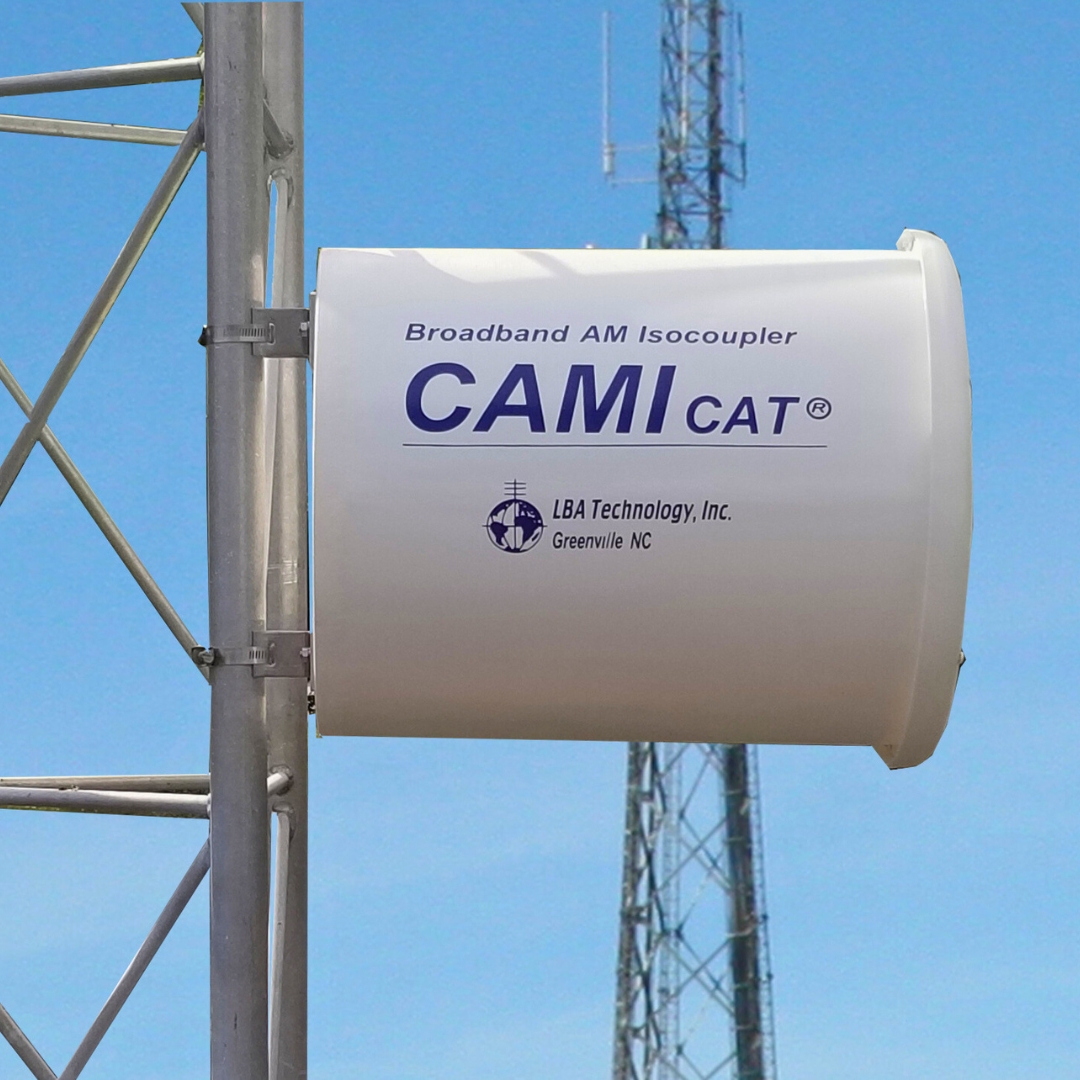

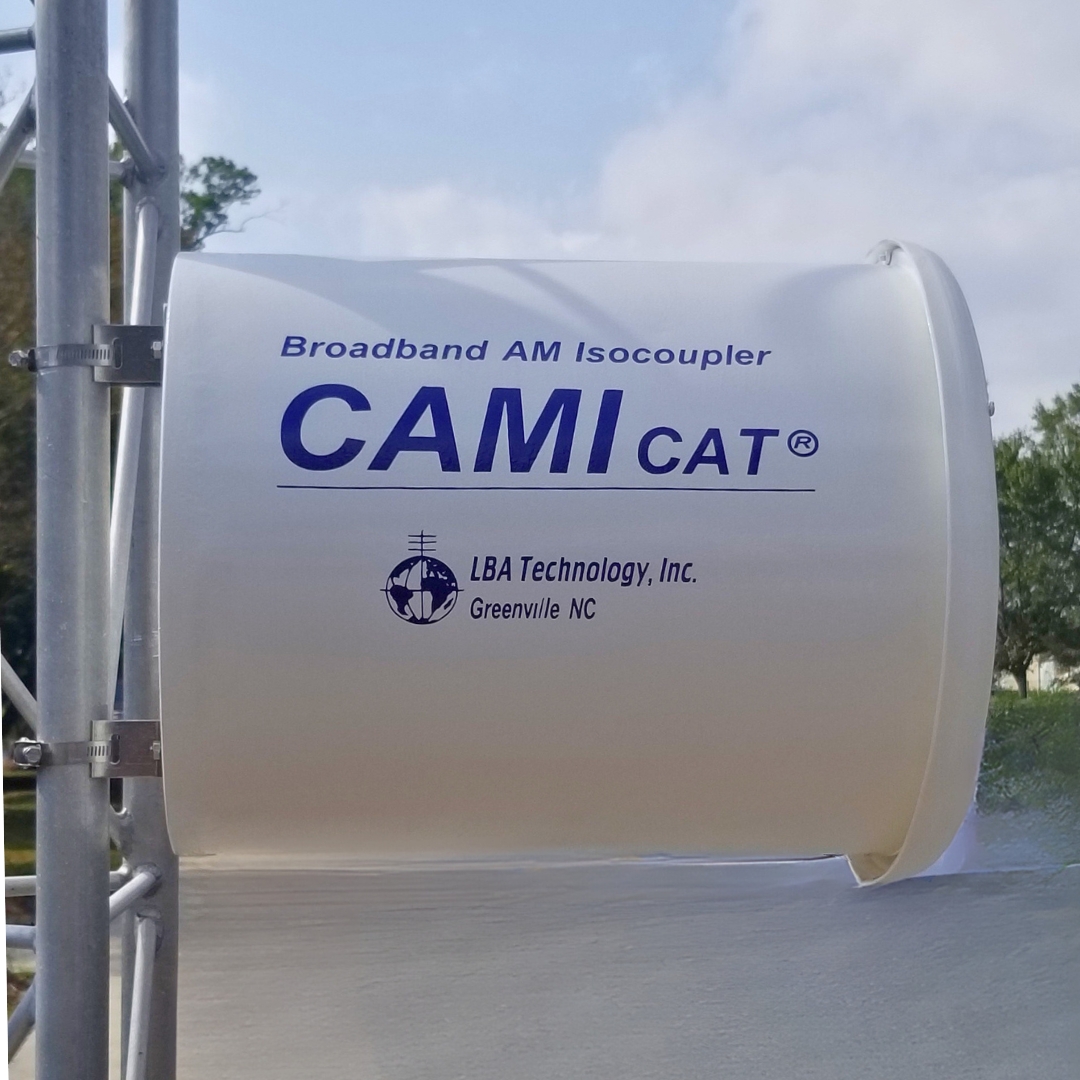

Introducing CAMI CAT Broadband AM Tower Isocoupler, the latest product in the LBA Technology’s CAMI™ series. This groundbreaking technology enables two CAT6 POE Ethernet cables to colocate on AM towers, offering a versatile solution for a wide range of applications. High Impedance AM isolation is achieved on any specified frequency between 530 – 1710 kHz, making CAMI CAT the go-to choice for mounting antennas and their coaxial lines on existing AM towers without significant changes to the transmitting system.

This  CAMI CAT Broadband AM Tower Isocoupler is meticulously crafted to meet your unique requirements through expert engineering design. Custom configurations are available upon request. For a personalized quote and tailored assistance, please submit a Quote Request form. Begin your broadcasting journey with CAMI CAT, starting at $4,225. Elevate your signal with precision and reliability.

• Broadband Compatibility: Works across a wide frequency range (1 GB*), supporting multiple applications.
• Dual CAT6 Support: Enables colocating two CAT6 POE Ethernet cables on AM towers for versatile data services.
• High AM Isolation: Achieves high impedance AM isolation on specified frequencies between 530 – 1710 kHz.
• Easy Integration: Simple to install, providing a cost-effective solution for mounting antennas without major system changes.
• Weatherproof Design: Resistant to weather and lightning, ensuring durability and consistent performance.

CAMI CAT Broadband AM Tower Isocoupler is a versatile solution designed for various  broadcasting and data applications, including:

• WISP Broadband
• Two-way and Microwave Links
• STL Links
• FM Translators
• Low Power FM
• LPTV and Television Translators
• High Power FM & TV Colocations

CAMI CAT’s broad compatibility and user-friendly features make it an excellent choice for diverse needs.

• Wide Frequency Range (min): 1 GB*
• Impedance: 1000 Base-Tx
• Coaxial Connectors: RJ45 (4 CAT6 circuits)
• DC Power Passing: 48 vdc@ .5A (POE)
• Isolation Frequency: Single, customer specified
• AM RF Impedance: >3000 ohms
• AM Base Volts: 3500 volts peak
• Dimensions (typical): 20” long, 18” Φ (50.8 cm x 45.72 cm Φ)
• Weight: 70 lbs (31.75 kg)
• Mounting Orientation: Horizontal
• Mounting Method: Tower / post brackets
• Temperature Range: -40°C to +50°C (-40°F to 122°F)
• Humidity: Weatherproof

*Supports 100’ CAT6 @10 GB, 240’ @1 GB | Specifications are subject to change without notice.
