fieldSENSE 2.0 – 50 MHz – 6 GHz

The FieldSENSE 2.0 Personal RF Monitor is engineered to provide effective protection for workers exposed to electromagnetic fields (EMF), such as tower climbers and field technicians working near antennas and broadcasting systems. This next-generation RF monitor is built to comply with global safety standards, including ICNIRP (2020), FCC (NCRP) OET65 (1997), Canada Safety Code 6 (2015), and IEEE C95.1 (2005), ensuring accurate readings of electric (E) and magnetic (H) fields across the full operating range.

The FieldSENSE 2.0 features advanced data logging capabilities, recording and storing measurement data that can be easily downloaded to a computer. The device uses six orthogonal probes (three for E-fields and three for H-fields), providing isotropic measurement to accurately assess radiation from all directions, including vertically and horizontally polarized signals. It is designed with a rugged IP64 enclosure for protection against dust and water, making it ideal for field use.

• Frequency Range: 50 MHz to 6 GHz RF field monitoring.
• Intrinsically Safe: Certified for hazardous environments.
• Real-Time EMF Monitoring: Continuous field strength measurements.
• Customizable Alarms: Adjustable thresholds for visual, audible, & vibration alerts.
• Clear LCD Display: Easy-to-read RF-level display.
• Dual Field Measurement: Measures electric (E) and magnetic (H) fields for comprehensive RF exposure monitoring.
• Isotropic Sensors: Six orthogonal probes ensure accurate readings from all directions with a deviation of ± 3 dB.
• Data Logging: Logs E & H field measurements, accessible via USB connection to a PC with free fieldSENSE software for detailed analysis.
• Compact & Lightweight: Comfortable for all-day wear.
• Long Battery Life: Up to 200 hours of continuous operation.

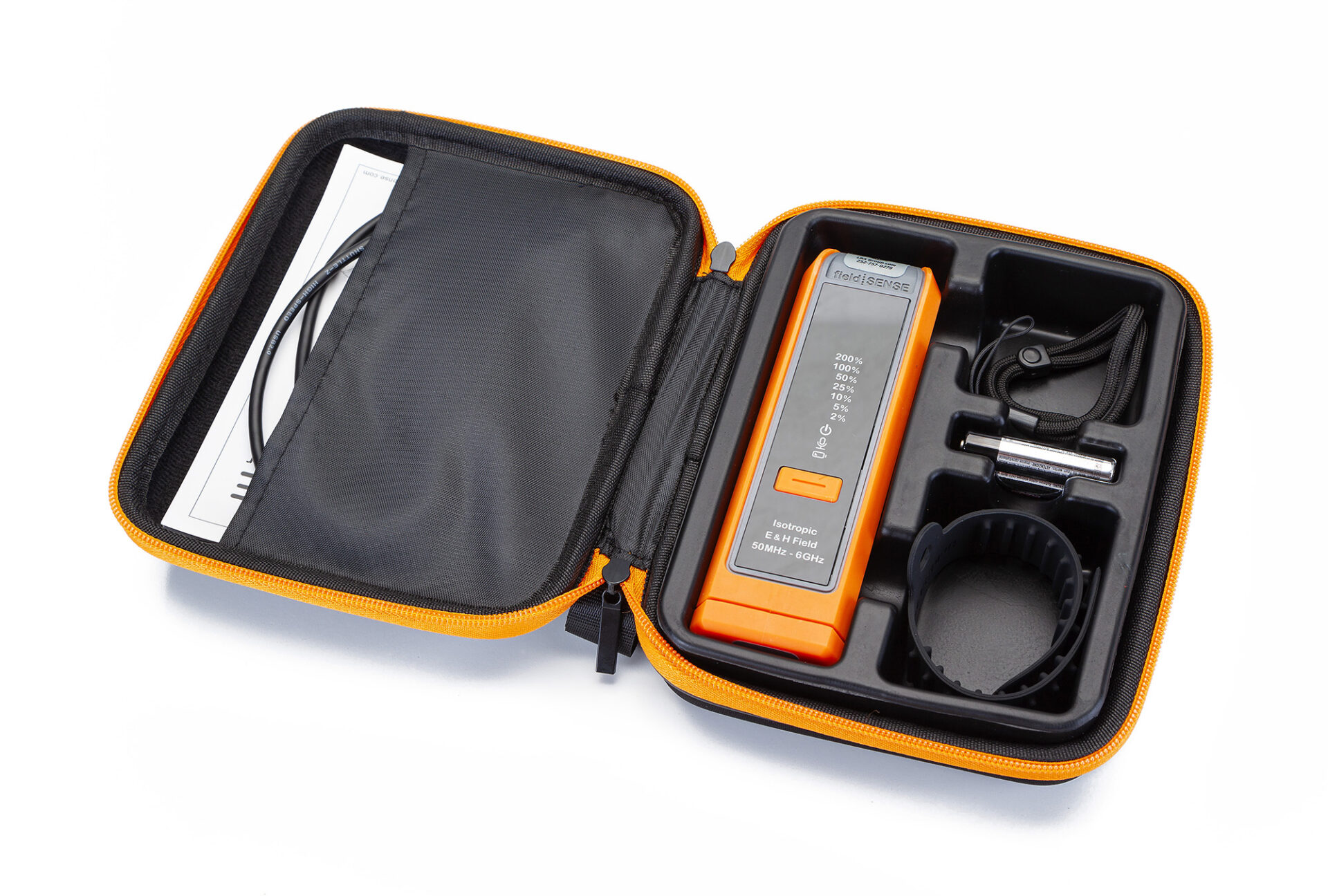

• Portable: Includes a rugged zipper case with molded foam insert for protection during storage and transport
• Compliance with Safety Standards: Conforms to ICNIRP (2020), FCC (NCRP) OET65 (1997), Canada Safety Code 6 (2015), and IEEE C95.1 (2005) exposure limits.

• Frequency Range: 50 MHz – 6 GHz
• Frequency Response: Shaped, compliant with ICNIRP, FCC, Canada SC6, and IEEE standards.
• Isotropy: ± 3 dB
• Probes: 3 orthogonal E-field and 3 orthogonal H-field probes.
• Measurement Type: Time-averaged RMS power density.
• Calibration Interval: Every 2 years.
• Battery Type: 2 x 1.5 V AAA (non-rechargeable alkaline).
• Battery Life: 6 months – 1 year (average usage).
• Weight (including batteries): 0.25 lb (115 gr).
• Dimensions: 146 x 26 x 42 mm.
• Impact Protection (IP Rating): IP64 (battery cap closed).
• Impact Protection (IK Rating): IK08.
• Operating Temperature: -20 °C to 50 °C.
• Fall Detection: 3-axis accelerometer.
• Manufacturing Warranty: 2 years
